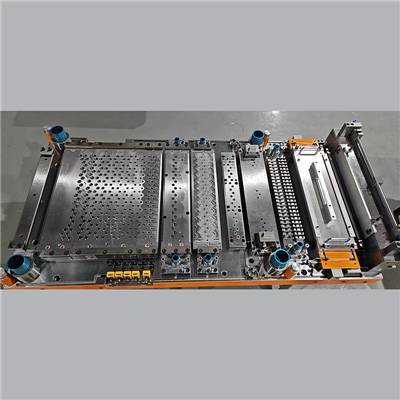

Product Features
- Main components: aluminum foil uncoiling device, aluminum foil lubrication device, rapid die change device, high-speed precision press, pulling mechanism, single and double jump device, fin collection device, waste collection device, electrical system, pneumatic system, hydraulic system, etc.
- The press is a single axis two-point four column mechanism, and the pressure points are distributed as two longitudinal points in the material direction.
- The hydraulic lifting function of the slider is convenient for mold debugging.
- Hydraulic overload protection device to protect the safety of press and die.
- Cantilever vacuum suction cup makes the aggregate more stable.
- The concentrated oil automatic circulating lubrication system has the function of oil circuit alarm.
- PLC electric centralized control system man-machine interface, convenient operation.
| JKC-63-24R, JKC-80-36R Technical parameter | ||||
|
Items |
JKC-63-24R |
JKC-80-36R |
||
|
Spindle structure |
Single axis double point |
|||
|
Capacity |
KN |
630 |
800 |
|
|
Slide of stroke |
mm |
40 |
60 |
40 |
|
Stroke |
S.P.M |
150-300 |
150-230 |
150-300 |
|
Die height max |
mm |
260-310 |
280-330 |
|
|
Slide lift |
mm |
80 |
100 |
|
|
Bottom size of slide |
mm |
1100×890 |
1055×1190 |
|
|
Size of table |
mm |
1600×900 |
1600×1200 |
|
|
Main motor power |
KW |
11 |
15 |
|
|
Collecting height |
mm |
720 |
||
|
Collecting length |
mm |
1200-2000 |
||
|
Width of material |
mm |
≤550 |
≤820 |
|
|
Inner diameter of material |
mm |
Φ150 |
||
|
Outer diameter of material |
mm |
Φ1000 |
||
|
Overall dimensions |
mm |
10000×4000×3500 |
10000×4000×3200 |
|
|
Press weight |
KG |
14000 |
18000 |
|
|
JKC-50S-24R, JKC-63S-36R Technical parameter |
||||
|
Items |
JKC-50S-20R |
JKC-63S-24R |
||
|
Spindle structure |
Single axis single point |
|||
|
Capacity |
KN |
500 |
630 |
|
|
Slide of stroke |
mm |
40 |
40 |
|
|
Stroke |
S.P.M |
150-300 |
150-300 |
|
|
Die height max |
mm |
260-310 |
260-310 |
|
|
Slide lift |
mm |
80 |
80 |
|
|
Bottom size of slide |
mm |
800×580 |
850×730 |
|
|
Size of table |
mm |
1300×750 |
1300×900 |
|
|
Main motor power |
KW |
7.5 |
11 |
|
|
Collecting height |
mm |
720 |
||
|
Collecting length |
mm |
1200-2000 |
||
|
Width of material |
mm |
≤410 |
≤550 |
|
|
Inner diameter of material |
mm |
Φ150 |
||
|
Outer diameter of material |
mm |
Φ1000 |
||
|
Overall dimensions |
mm |
8500×4000×3300 |
8500×4000×3200 |
|
|
Press weight |
KG |
11000 |
12000 |
|
Brand of main components
|
Item |
Brand |
|
System |
Mitsubishi |
|
Guide rail screw |
TBI |
|
Servo motor |
Mitsubishi |
|
Electric |
Schneider |
|
Pneumatic Element |
SMC |
JKC High Speed H type Fin Press production line
